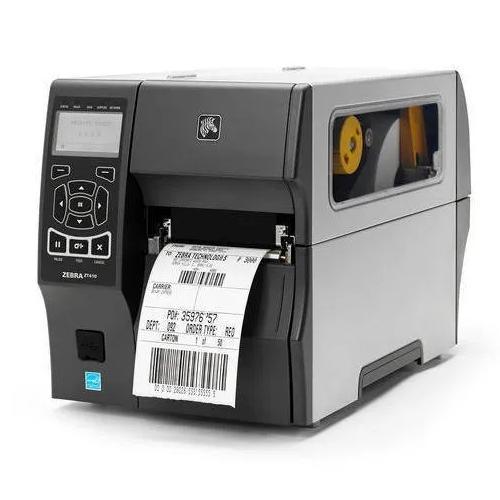

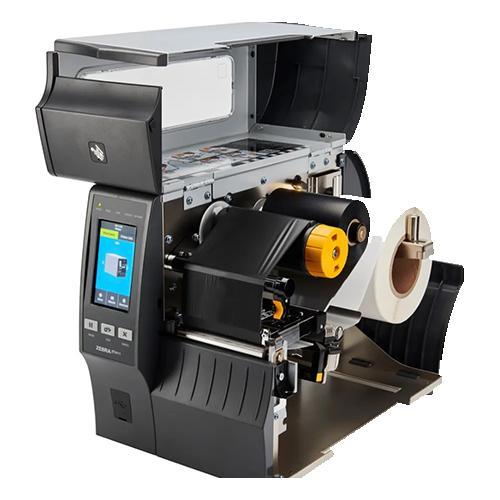

ZT411 Industrial Printer

Specifications are provided for reference and are based on testing the ZT411™ printer using genuine

Zebra® supplies. Results may vary in actual application settings or when using other-than-recommended

Zebra supplies. Zebra recommends always qualifying any application with thorough testing

Standard Features

Printing

• Thermal transfer and direct thermal printing

• Thin film printhead with E3™ Element

Energy™ Equalizer for superior print quality

• 203 dpi print resolution (8 dots / mm)

• Print speed per second up to 14"

(356 mm / second)

Communication

• USB 2.0, high speed

• RS-232 Serial (RS-232C with DB9F connector;

Configurable baud rate (2400 – 115,200kB),

parity, and data bits. Stop bits at 1 or 2;

Software (XON/XOFF), hardware (DTR/DSR

or RTS/CTS) communication handshake

protocols)

• 10/100 Ethernet: Supports networks

internally integrated option that enables the

use of Webview and Alert features

• Bluetooth® 4.1 (including Apple®)

• Dual USB Host

Operation

• 4.3-inch color touch display with intuitive

menu for quick operation and settings

management

• Bi-colored status LEDs for quick printer status

• ARM Cortex A7 processor

• 256 MB RAM memory (8 MB User Available)

• 512 MB Flash memory (64 MB User Available)

• Print Touch™ application

• Link-OS®-enabled

• Auto-switching 100-240V power supply

• ENERGY STAR® qualified

• Printhead element out detection

Media Support

• Dual media sensors — transmissive

and reflective

• 3” media supply hanger

• Auto calibration when printer is turned on

or when printhead is closed

Design

• Easy, side-loading metal print mechanism

• Tool-less printhead and platen replacement

• Metal media cover with enlarged clear

viewing window

• Robust-gold user touch points indicating

key adjustments

• Bi-fold media door decreasing overall

operating space by 35%

Firmware

• Resident ZPL®, ZPL II® and EPL™ programming

languages, selectable through software or

front panel

• XML-Enabled Printing — allows XML

communications for barcode label

printing eliminating license fees and

printer server hardware while lowering

customization and programming cost

Optional Features

Printheads / Resolution

• Printhead 203 dpi (8 dots / mm)

• Printhead 300 dpi (12 dots / mm)

Communication

• Parallel (Bi-directional interface)

• Wireless dual radio with 802.11ac Wi-Fi

and Bluetooth 4.1

• 10/100 Ethernet

• Applicator interface

Applicator interface

Media Handling

• Rewind — Internally rewinds a full roll

of printed labels on 3" core, or peels

and rewinds liner (factory installed only)

• Peel — Choice of two options:

− Front mount, passive peel option

− Liner take-up option — Additional full-roll

liner take-up spindle accommodates

standard printer base

• Cutter — Front-mount guillotine cutter and

catch tray, operates under software control

cutting labels individually, or in strips (not

compatible with rewind and peel options)

• 1" I.D. Core media supply hanger

• Ink-side-in ribbon supply spindle

Fonts

Asian and other international scalable and

smooth bitmapped fonts

RFID

• Fully integrated ThingMagic® UHF EPC Gen 2

V2.0/ISO 18000-63 RFID Reader / Encoder

• Prints and encodes tags with a minimum

pitch of 0.6" / 16 mm

• Adaptive Encoding Technology simplifies

RFID setup and eliminates complex RFID

placement guidelines

• Field-installable on-metal RFID kit available

for 203 and 300 dpi

ZKDU Keyboard Display Unit

Enter variable data and retrieve stored forms for

standalone applications (requires null modem

adapter with DB9 serial cable

ZBI 2.0™

Field installed via activation key

• First Dot Location: Measured from inside media backing edge:

0.10" ±.04" (2.5 mm, not to exceed -.5 mm +1.0 mm)

• Media Registration Tolerance:

− Vertical = <±0.039" (±1.0 mm) on non-continuous media

− Horizontal = <±0.039" (±1.0 mm) within a roll of media

Media Specifications

• Media Types: Continuous, die-cut, notch, black-mark

• Maximum Label and Liner Length:

− 39" (991 mm) non-continuous — 203 dpi, 300 dpi

− 20" (508 mm) non-continuous — 600 dpi

• Media Web Width (Label and Liner):

− 1.00" (25.4 mm) to 4.50" (114 mm) Tear / Cutter

− 1.00" (25.4 mm) to 4.25" (108 mm) Peel / Rewind

• Minimum Label Length:

− Tear-off mode: 0.5" (12.7 mm)

− Peel mode: 0.5" (12.7 mm)

− Rewind mode: 0.5" (12.7 mm)

− Cutter: 1.00" (25.4 mm)

• Media Thickness (Label and Liner):

− 0.0023" (0.058 mm) to 0.010" (0.25 mm)

• Maximum Media Roll Dimensions:

− 8.0" (203 mm) O.D. on a 3" (76 mm) I.D. core
